Robotically controlled catheter-based imaging for beating heart surgery

A robotic system for automatic ultrasound imaging during beating heart surgery can increase situational awareness, improve workflow, reduce procedure times, and reduce complications. This system steers an ultrasound imager in the tip of a steerable catheter to automatically image cardiac structures or working instruments (such as ablation catheters) inside the heart. Steering is controlled by using a closed-form solution for forward and inverse kinematics that calculates the direction of the side-facing ultrasound imaging plane. Our system is capable of accurate position control, angular adjustments, and instrument tracking.

Figure 1: Schematic of system for controlling ultrasound catheters

Commercially available ultrasound imaging catheters, known as intracardiac echocardiography (ICE), have an ultrasound transducer in the tip for acquiring high-resolution images from within the heart during procedures. This is useful for reliable imaging in diagnosis, navigation, and treatment. ICE catheters, which are currently controlled manually, are extremely challenging to aim due to the complex relationship between handle knobs and imager motion. The difficulty in steering ICE has limited its use to a few critical tasks.

Our ICE-steering system can achieve specialized rotation motions to safely image regions of the heart. Sequences of 2D images can be reconstructed into a 3D or 4D volume, as in Figure 2.

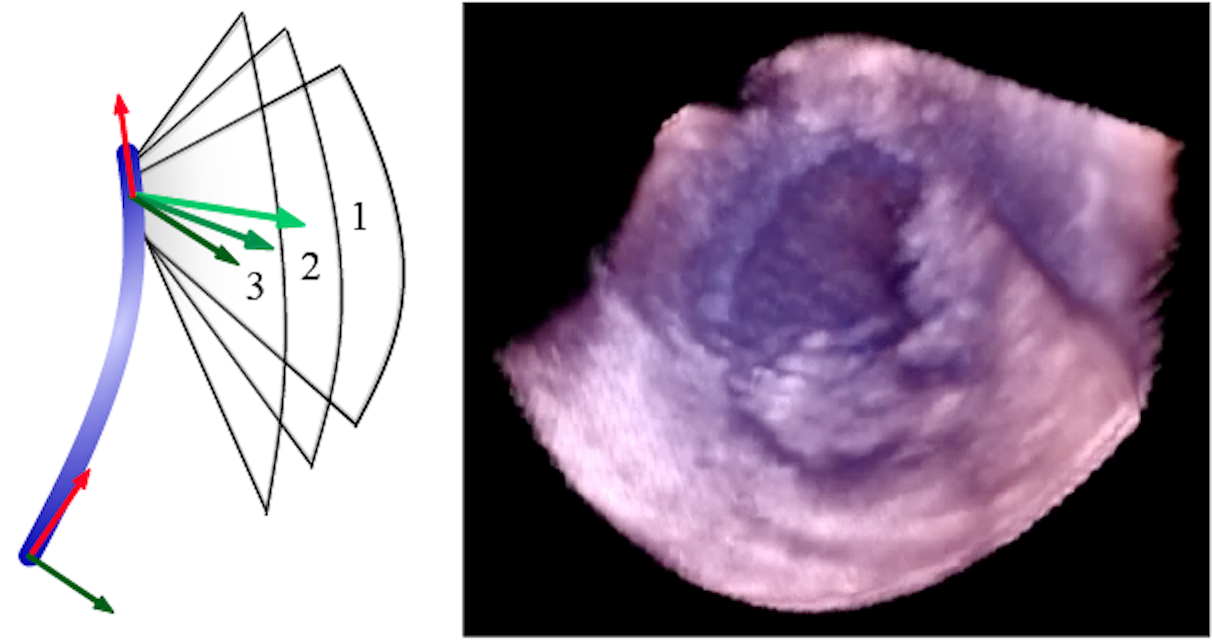

Figure 2: (left) Diagram of imaging plane rotating to collect images, (right) 3D ultrasound reconstruction of the mitral valve and left ventricle

Additionally, the system can automatically monitor instruments that interact with cardiac tissue by localizing the instrument and rotating the ICE imager accordingly. This will show a high quality ultrasound image of the instrument-tissue contact point.

The net benefits of the robotic system described here will include better situational awareness leading to faster work flow, reduced procedure time, and fewer complications.


Publications:

  • Paul M. Loschak, Alperen Degirmenci, and Robert D. Howe
    Predictive Filtering in Motion Compensation with Steerable Cardiac Catheters
    Proc. IEEE International Conference on Robotics and Automation (ICRA), Singapore, May 29 - June 2, 2017.

  • Alperen Degirmenci, Paul M. Loschak, Cory M. Tschabrunn, Elad Anter and Robert D. Howe
    Enabling Autonomous Ultrasound-based Procedure Guidance In Cardiac Interventions
    Workshop C4 Surgical Robots: Compliant, Continuum, Cognitive, and Collaborative
    IEEE International Conference on Robotics and Automation (ICRA), Singapore, June 2, 2017
    Finalist of the Best Poster Paper Award.

  • Paul M. Loschak, Laura J. Brattain, and Robert D. Howe
    Algorithms for Automatically Pointing Ultrasound Imaging Catheters
    IEEE Transactions on Robotics, Volume 33, Issue 1, pp.81-91, Feb 2017.

  • Paul M. Loschak, Alperen Degirmenci, Laura J. Brattain, Cory M. Tschabrunn, Elad Anter, and Robert D. Howe
    Robotic Control of Ultrasound Catheters for Intra-cardiac Visualization
    Proceedings of the 9th Hamlyn Symposium on Medical Robotics, London, UK, June 25-28, 2016.

  • Alperen Degirmenci, Paul M. Loschak, Cory M. Tschabrunn, Elad Anter, and Robert D. Howe
    Compensation for Unconstrained Catheter Shaft Motion in Cardiac Catheters
    Proc. IEEE International Conference on Robotics and Automation (ICRA), Stockholm, Sweden, May 16-21, 2016.

  • Paul M. Loschak, Alperen Degirmenci, Yaroslav Tenzer, Cory M. Tschabrunn, Elad Anter, and Robert D. Howe
    A 4-DOF Robot for Positioning Ultrasound Imaging Catheters
    ASME Journal of Mechanisms and Robotics, 8(5), May 2016.

  • Paul M. Loschak, Alperen Degirmenci, Laura J. Brattain, and Robert D. Howe
    Automatic Steering of Cardiac Imaging Catheters
    Workshop on Navigation and Actuation of Flexible Instruments in Medical Applications (NAFIMA), IEEE/RSJ Int. Conf. on Intelligent Robots and Systems, Hamburg, Germany, September 28 - October 02, 2015.

  • Paul M. Loschak, Yaroslav Tenzer, Alperen Degirmenci, and Robert D. Howe
    A 4-DOF Robot for Positioning Ultrasound Imaging Catheters
    Proceedings of the ASME 2015 International Design Engineering Technical Conferences & Computers and Information in Engineering Conference IDETC/CIE 2015, August 2-5, 2015, Boston, MA, USA.

  • Laura J. Brattain, Paul M. Loschak, Cory M. Tschabrunn, Elad Anter, and Robert D. Howe
    Instrument Tracking and Visualization for Ultrasound Catheter Guided Procedures
    MICCAI 2014 Workshop on Augmented Environments for Computer Assisted Interventions, Boston, USA, September 14, 2014.

  • Paul M. Loschak, Laura J. Brattain, and Robert D. Howe
    Algorithms for Automated Pointing of Cardiac Imaging Catheters
    MICCAI 2014 Workshop on Computer-Assisted and Robotic Endoscopy, Boston, USA, September 18, 2014.

  • Laura J. Brattain, Paul M. Loschak, Cory M. Tschabrunn, Elad Anter, Robert D. Howe
    Robotic Steering of Cardiac Ultrasound Imaging Catheters
    Proceedings of the 6th Hamlyn Symposium on Medical Robotics, London, UK, June 22-25, 2013.

  • Paul M. Loschak, Laura J. Brattain, Robert D. Howe
    Position Control of Motion Compensation Cardiac Catheters
    Proc. IEEE International Conference on Robotics and Automation (ICRA), Karlsruhe, Germany, pp. 5774-5779, 2013.
    •
